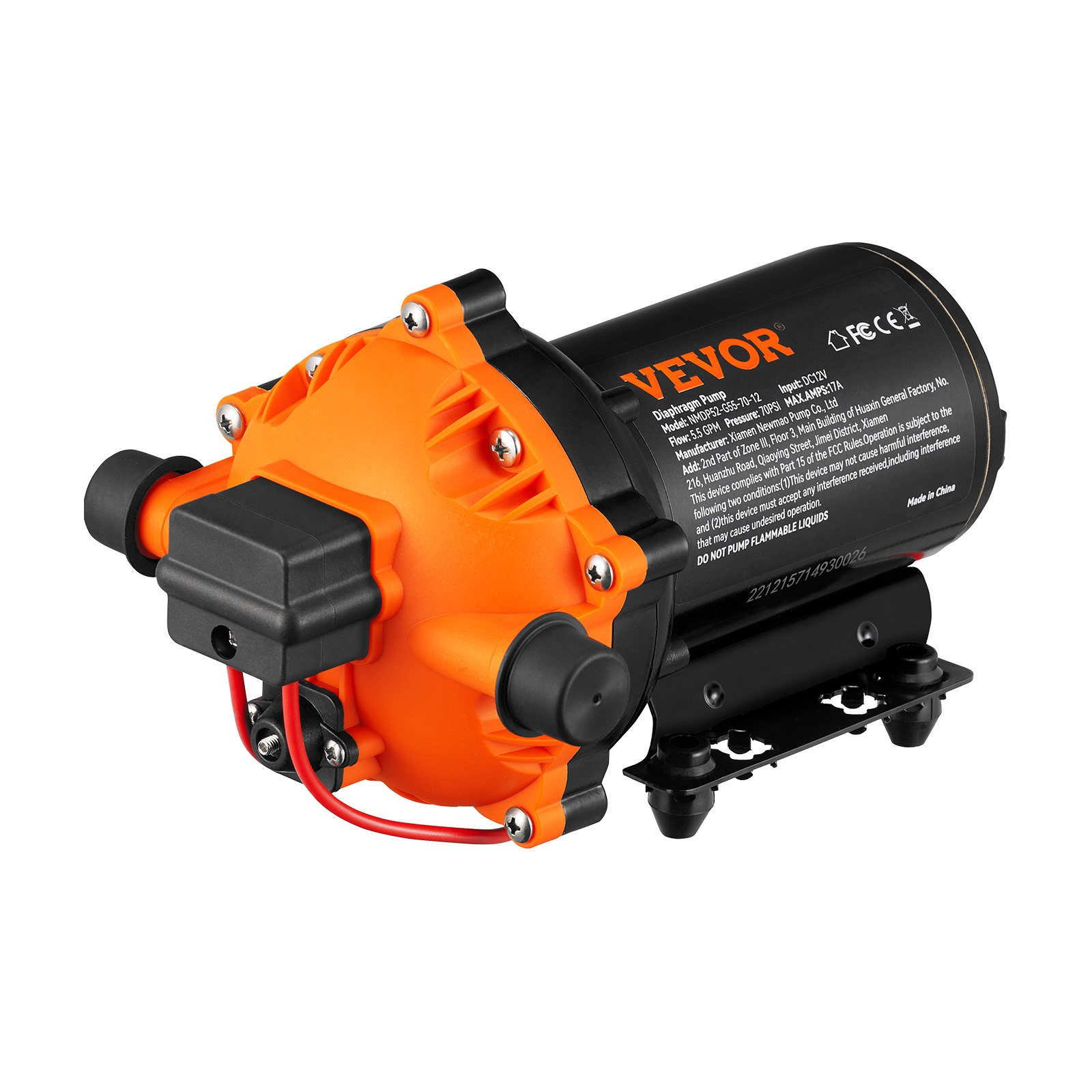

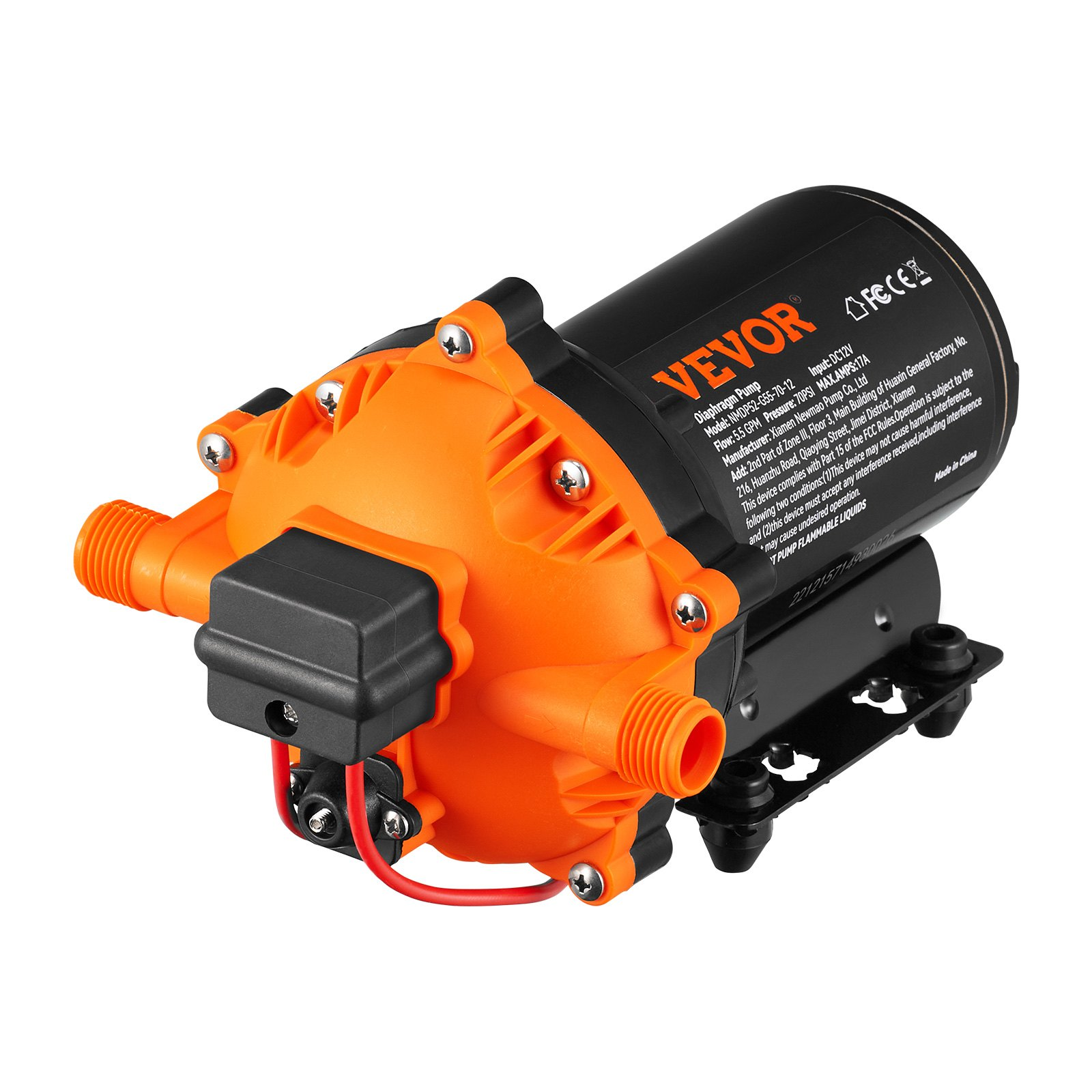

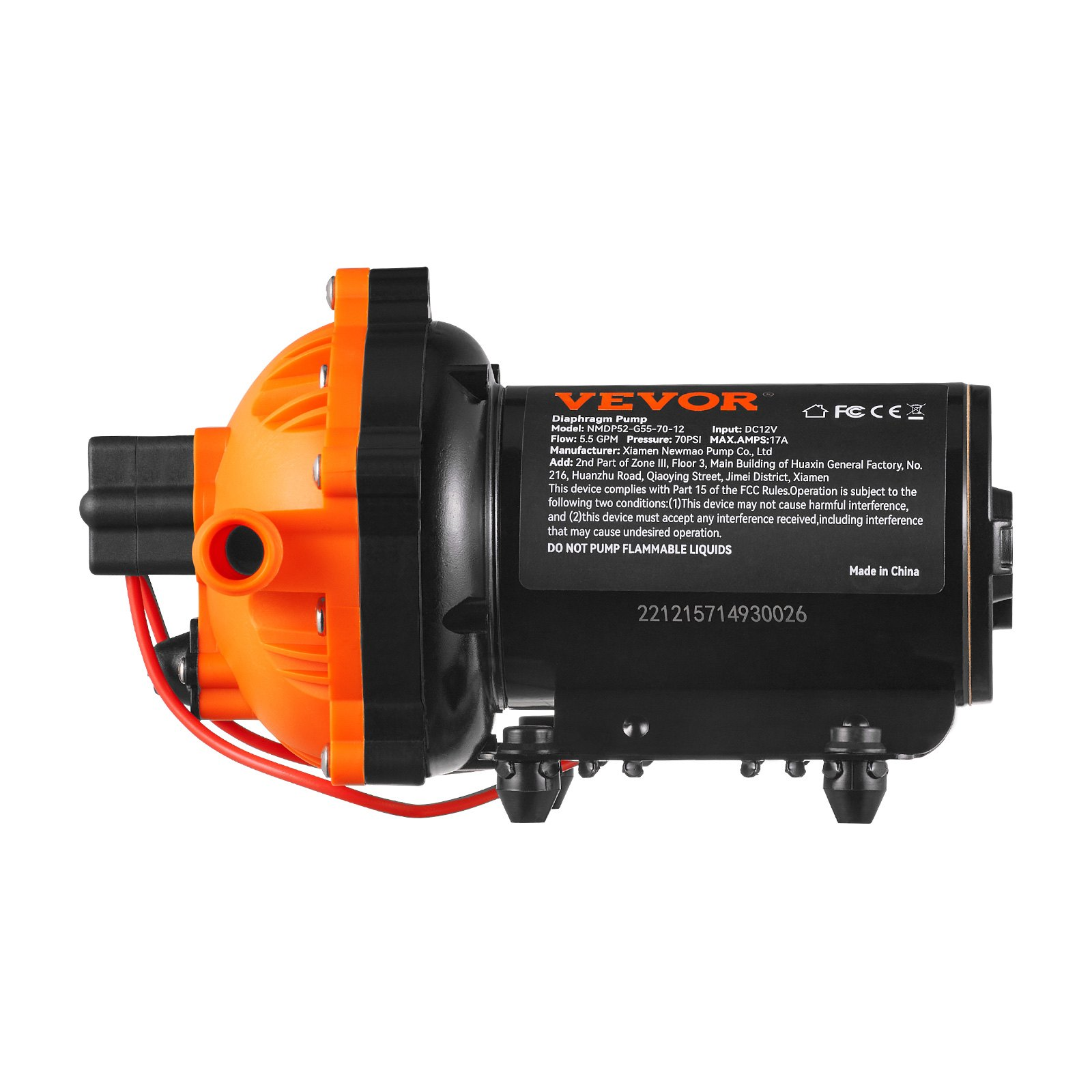

The VEVOR 12V Water Pressure Diaphragm Pump is a reliable and efficient solution for boosting water pressure in your boat or RV. With a powerful 5.5 GPM open flow rate, this pump ensures a steady water supply wherever you go. Whether you're on a camping trip or exploring the open waters, this pump will meet all your water pressure needs.
Adjustable Pressure for Versatile Applications

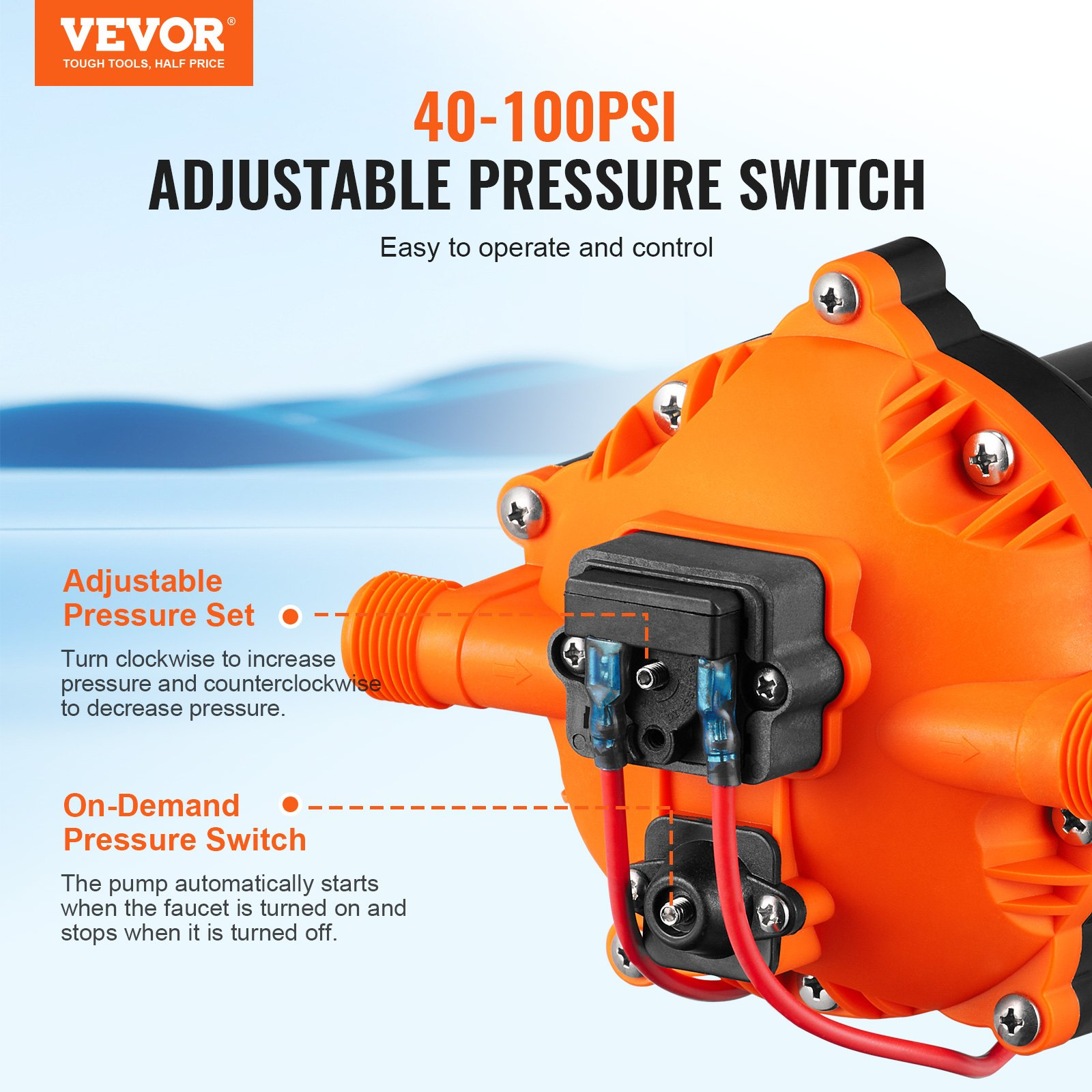

This self-priming pump features a rated pressure of 70 PSI, which can be easily adjusted between 40-100 PSI to suit different requirements. Simply turn the pump clockwise to increase the pressure or vice versa to decrease it. This flexibility allows you to customize the water pressure according to your specific needs.
No Hassle Installation

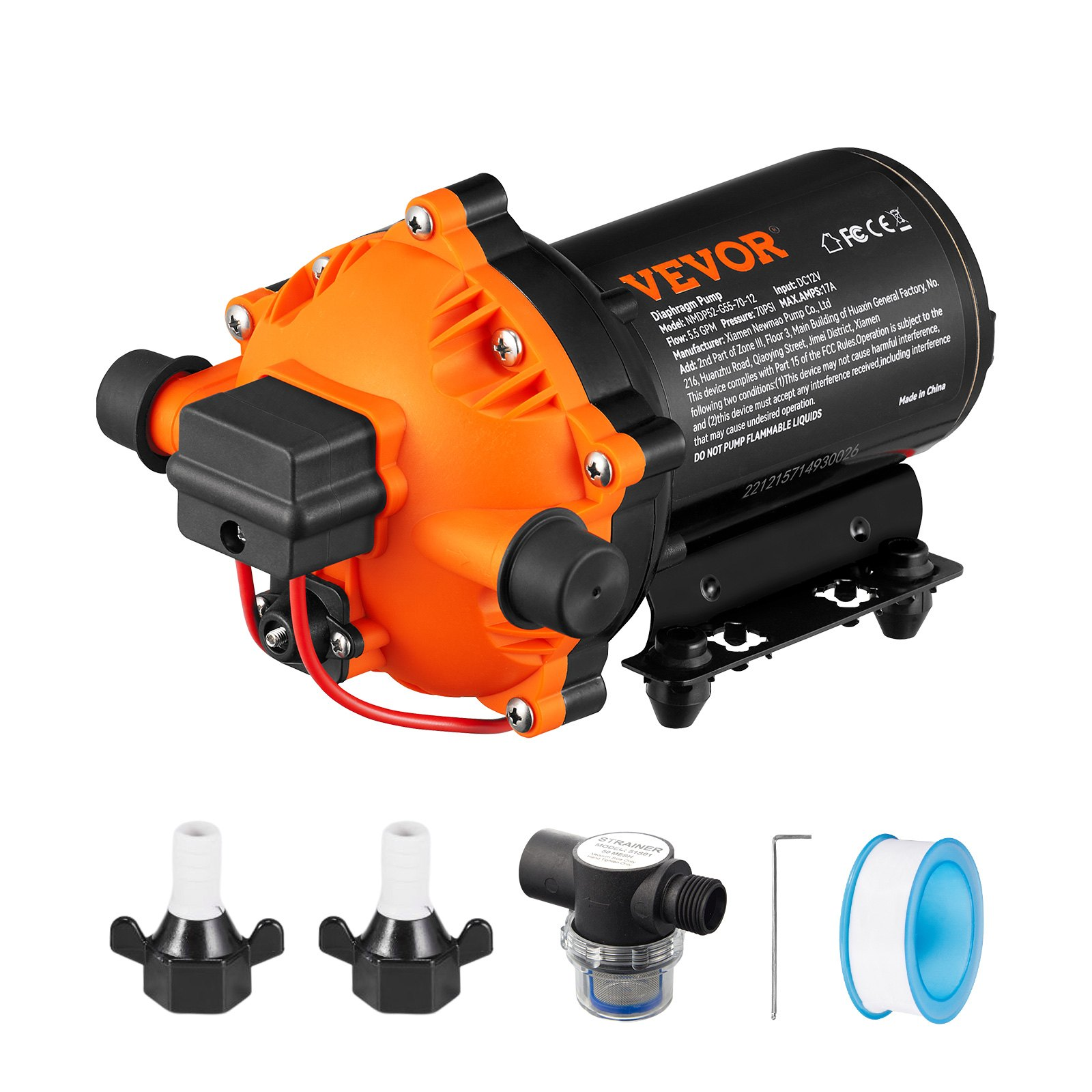

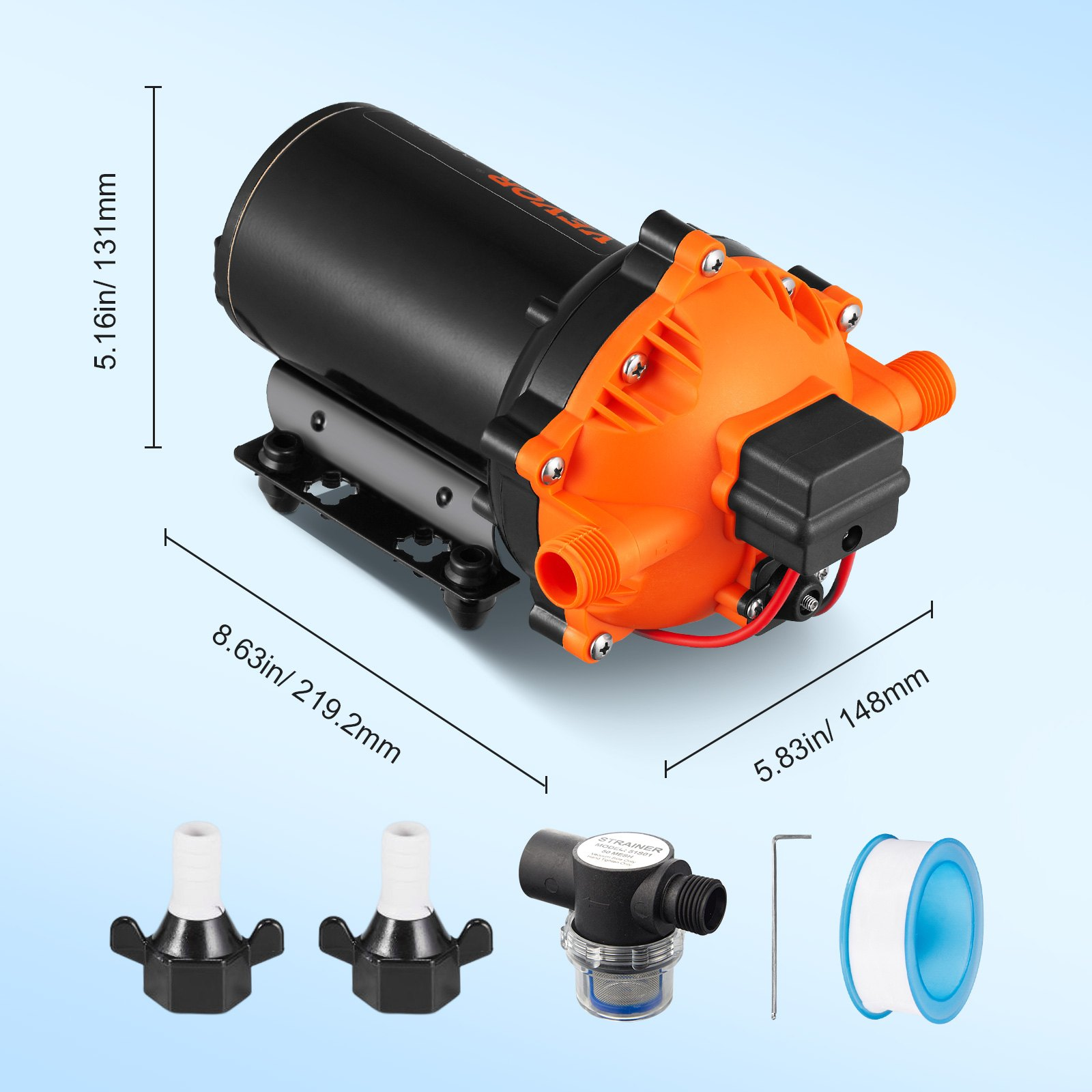

The VEVOR Water Pressure Diaphragm Pump comes with two 1/2" hose adapters, ensuring easy connection to the inlet and outlet. Its DC power supply eliminates the need for carrying a separate battery, making it convenient and hassle-free to use. Additionally, the pump's compact size (8.63" x 5.83" x 5.16") and lightweight design (6.17 lbs) allow for easy installation and portability.
Reliable and Durable

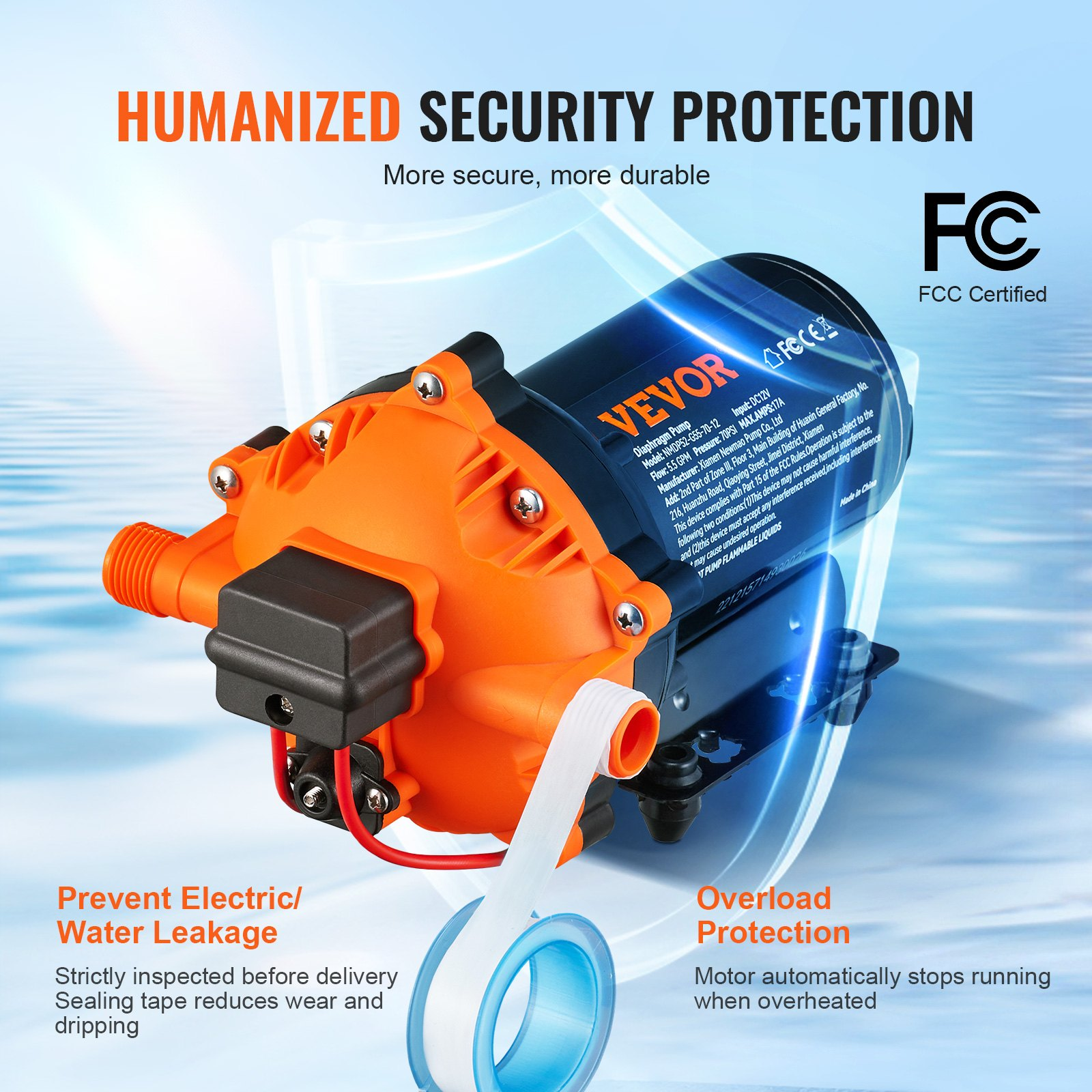

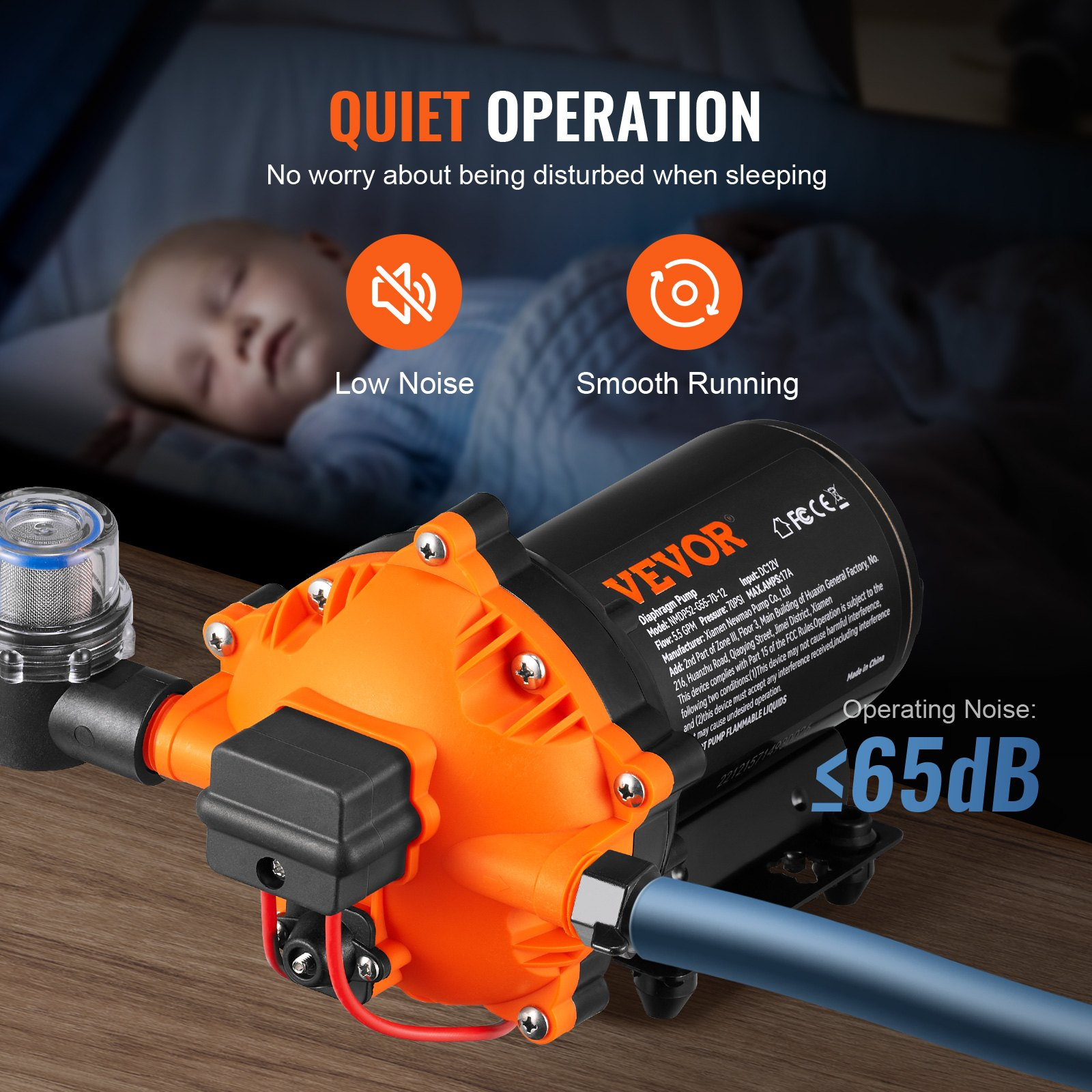

This pump is built to last. It features overload protection and operates with low noise, ensuring a smooth and quiet user experience. The diaphragm material is made of Santoprene, guaranteeing long-lasting performance even in challenging conditions. With a shell made of PA6 + 30% Glass Fiber, this pump offers excellent durability and resistance to impact, ensuring reliable operation for years to come.
Specifications:
Max Liquid Temperature: 140℉/60℃
Number of Diaphragm Chambers: 5 PCS

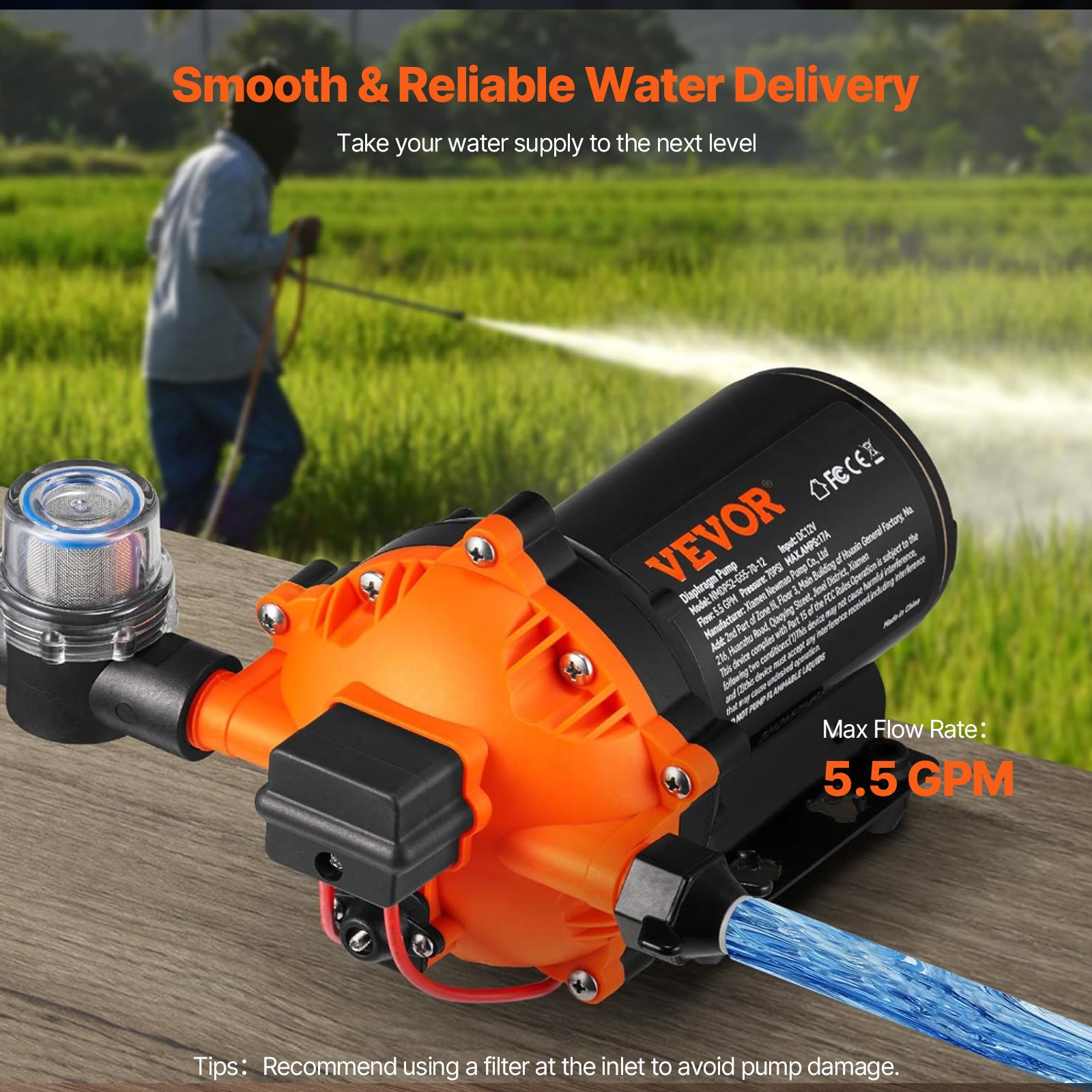

Max Flow Rate: 5.5 GPM
Granule Size: <300 um (50 Mesh)
Certification: FCC
Ambient Temperature: 32-140℉/0-60℃
Rated Voltage: 12V
Valve Material: EPDM
Amps: 17A
Rated Pressure: 70 PSI (40-100 PSI Adjustable)
Rated Suction Height: 6 ft/1.8 m
Inlet/Outlet Diameter: 1/2" MNPT
Product Weight: 6.17 lbs/2.8 kg
Specifications: - Length: 27.0 in, Width: 18.2 in, Height: 18.0 in
